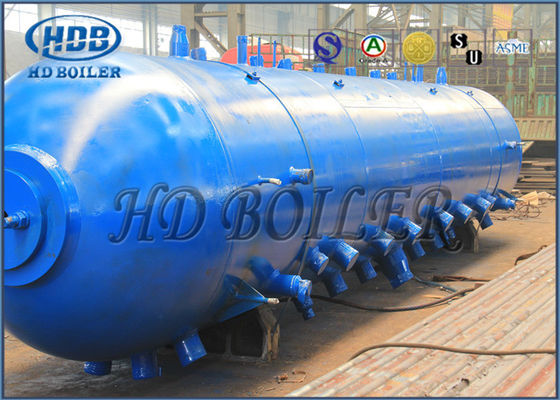

High Temperature Gas Hot Water Boiler Steam Drum For Power Station Environmental Protection

High Temperature Gas Hot Water Boiler Steam Drum For Power Station Environmental Protection

    • High Temperature Gas Hot Water Boiler Steam Drum For Power Station Environmental Protection
    • High Temperature Gas Hot Water Boiler Steam Drum For Power Station Environmental Protection
    • High Temperature Gas Hot Water Boiler Steam Drum For Power Station Environmental Protection
    • High Temperature Gas Hot Water Boiler Steam Drum For Power Station Environmental Protection
    • High Temperature Gas Hot Water Boiler Steam Drum For Power Station Environmental Protection
  • High Temperature Gas Hot Water Boiler Steam Drum For Power Station Environmental Protection

    Thông tin chi tiết sản phẩm:

    Place of Origin: Jiangsu , China
    Hàng hiệu: HDB
    Chứng nhận: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Steam drum

    Thanh toán:

    Minimum Order Quantity: 1 Set
    Giá bán: Negociable
    Delivery Time: 30 days after deposit
    Payment Terms: L/C, T/T
    Supply Ability: 500 Tons per Month
    Liên hệ với bây giờ
    Chi tiết sản phẩm
    Structure: Fire / Water Tube Fuel: Coal / Gas / Coal-fired / Water Heat
    Type: Natural Circulation / Once Through Output: Hot Water / Steam

    Description



    The steam drum is the primary interface between water and steam. In a coal-fired plant, boiler feedwater passes through the economizer and into the drum where the steam separates from the feedwater and is drawn off to the superheater.Maintaining constant liquid level in the upper part of the steam drum is necessary to provide the proper quality of steam. Instrumentation must withstand high temperatures and pressures.





    Steam-water separation details



    Primary steam-water separation removes nearly all the steam from the water so that very little steam is recirculated from the drum bottom towards the heated tubes through the outlet connection (downcomer).

    At secondary separation, steam is passed through a secondary stage of separators or scrubber elements (usually closely spaced corrugated parallel plates) for final water droplet removal. Steam is then exhausted through various ports.





    High Temperature Gas Hot Water Boiler Steam Drum For Power Station Environmental Protection



    Certificate







    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



    1. Fabrication area of 200,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8.ASME 'S','U' and NB stamp authorization



    Design and Manufacturing capacity



    1. Two automatic coiler production lines

    2. Hot bending to minimum bending radius 0.6D

    3. Membrane wall tube bending , with horizontal and vertical panel bending machines

    4. Panel fabrication for up to for 1000MW power plant boilers

    5. Fabrication of CFB Boiler Cyclone Separators

    6. Fabrication of Header to Chinese standards(GB), US standards (ASME), or EU standard (EN)

    7. Broad range of heat treatment equipment including 10 furnaces, offering normalizing and tempering
