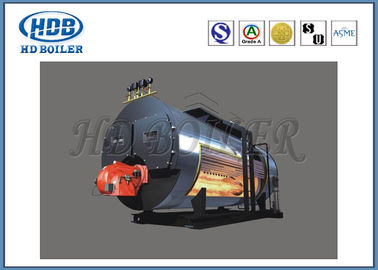

Automatic Horizontal Gas Fired Hot Water Boiler , High Pressure Steam Boiler ISO9001

Automatic Horizontal Gas Fired Hot Water Boiler , High Pressure Steam Boiler ISO9001

    • Automatic Horizontal Gas Fired Hot Water Boiler , High Pressure Steam Boiler ISO9001
    • Automatic Horizontal Gas Fired Hot Water Boiler , High Pressure Steam Boiler ISO9001
    • Automatic Horizontal Gas Fired Hot Water Boiler , High Pressure Steam Boiler ISO9001
    • Automatic Horizontal Gas Fired Hot Water Boiler , High Pressure Steam Boiler ISO9001
  • Automatic Horizontal Gas Fired Hot Water Boiler , High Pressure Steam Boiler ISO9001

    Thông tin chi tiết sản phẩm:

    Place of Origin: China
    Hàng hiệu: HD Boiler
    Chứng nhận: ISO9001,ASME,Grade A,SGS,EN
    Model Number: WNS

    Thanh toán:

    Minimum Order Quantity: 1Set
    Giá bán: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Sets / Per Year
    Liên hệ với bây giờ
    Chi tiết sản phẩm
    Condition: New Structure: Fire Tube
    Fuel Available: Gas-Fired, Oil-Fird, Diesel-Fired Rated Working Pressure(Mpa): 1.0-1.25
    Evaporation capacity: 1-20t / h Rated Steam Temperature: 184-193
    Surface Treatment: Painted Operation: Automatic
    Typical User: Food and Textile and Hotel and Oil Fired Placemen: Horizontal Boiler



    Fast start WNS OIL(GAS) Fired Steam Hot Water Boiler Small Footprint with ISO9001



     Structural features


    1, WNS series boiler adopts horizontal three return wet back liner structure is a corrugated furnace, Mainly by the pot shell, furnace, steering smoke room, smoke tube etc.

    2, Boiler suitable for light oil, heavy oil, natural oil, liquefied petroleum gas, city gas and other fuels.

    The performance advantage




    • Use the wet liner structure, furnace heating surface wave back, symmetrical layout, effectively reduce the thermal stress, improves the safety and life of the boiler.
    • Using the thread smoke tube to improve the heat transfer effect of flue pipe.
    • Boiler heating surface layout reasonable, high thermal efficiency, fast start.
    • The steam boiler combustion chamber adopts low position, so that the boiler water level safety range is larger, the boiler steam is larger, the steam quality is well guaranteed.
    • Using the international well-know brand burner and advanced automatic control system, the combustion is more stable, more convenient operation, operation more safety.
    • Boiler structure is compact, small footprint, fast installation.



    Automatic Horizontal Gas Fired Hot Water Boiler , High Pressure Steam Boiler ISO9001



    Parameter



    Model WNS
    2-1.0-Y,Q
    WNS
    4-1.25Y,Q
    WNS
    6-1.25-Y,Q
    WNS
    8-1.25-Y,Q
    WNS
    10-1.25-Y,Q
    WNS
    15-1.25-Y,Q
    WNS
    20-1.25-Y,Q
    Rated evaporation capacity(t/h) 2 4 6 8 10 15 20
    Rated working pressure(MPa) 1.0 1.25 1.25 1.25 1.25 1.25 1.25
    Rated steam temperature 184 193 193 193 193 193 193
    Wear-supply temperature 20 20 60 60 60 104 104
    Boiler volume(m3) 3.2 7.4 10.6 11.7 14.4 16.8 21.2
    Design efficiency(%) 90 90 90 90 90 90 90
    Applicable fuel



    Light oil,heavy oil,natura gas,liquified gas and urban coal gas

    Extemal size Lenght A(mm) 5084 6022 7151 7600 8360 9050 9650
    Width B(mm) 2450 2700 2800 3000 3000 4500 5000
    Height H(mm) 2380 2684 2882 3200 3200 5200 5600
    Boiler weight (t) 7.2 12.6 17.2 18.6 23.5 36.2 45.5
    Diamater of main steam opening(mm) 65 100 125 150 150 200 200
    Diameter of safety valve(mm) 40×2 50×2 65×2 65×2 80×2 100×2 100×3
    Chimney diamater(mm) 350 450 600 700 750 900

    1000



    Company Introduction


    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
