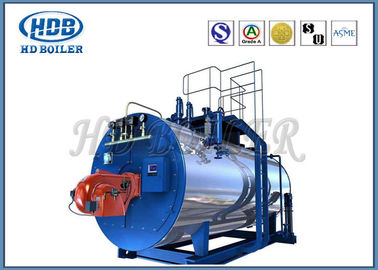

Oil Fired / Gas Fired Steam Boiler , Industrial Steam Generators High Efficiency

Oil Fired / Gas Fired Steam Boiler , Industrial Steam Generators High Efficiency

    • Oil Fired / Gas Fired Steam Boiler , Industrial Steam Generators High Efficiency
    • Oil Fired / Gas Fired Steam Boiler , Industrial Steam Generators High Efficiency
    • Oil Fired / Gas Fired Steam Boiler , Industrial Steam Generators High Efficiency
  • Oil Fired / Gas Fired Steam Boiler , Industrial Steam Generators High Efficiency

    Thông tin chi tiết sản phẩm:

    Place of Origin: Zhangjiagang,Jiangsu,China
    Hàng hiệu: HD Boiler
    Chứng nhận: ISO9001,ASME,Grade A,SGS,EN
    Model Number: WNS

    Thanh toán:

    Minimum Order Quantity: 1Set
    Giá bán: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Sets / Per Year
    Liên hệ với bây giờ
    Chi tiết sản phẩm
    Condition: New Structure: Fire Tube
    Fuel Available: Gas-Fired, Oil-Fird, Diesel-Fired Rated Working Pressure(Mpa): 1.0-1.25
    Rated heating capacity: 1.4-14 (MW) Rated Steam Temperature: 184-193
    Surface Treatment: Painted Operation: Automatic
    Typical User: Food and Textile and Hotel and Oil Fired Placemen: Horizontal Boiler

    Remarkable Energy Saving Effect WNS OIL(GAS) Fired Steam Hot Water Boiler With Fast Installation

    Structural features


    WNS oil (gas) fired steam hot water condensation boiler. External integrated fin tube type economizer. Independent condenser, compact structure, convenient repair, the energy saving effect is remarkable. Thermal efficiency could 100% according to low calorific value of fuel. At user request, boiler could use PLC control, and reserve interface remotely operated.

    The performance advantage




    • Use the wet liner structure, furnace heating surface wave back, symmetrical layout, effectively reduce the thermal stress, improves the safety and life of the boiler.
    • Using the thread smoke tube to improve the heat transfer effect of flue pipe.
    • Boiler heating surface layout reasonable, high thermal efficiency, fast start.
    • The steam boiler combustion chamber adopts low position, so that the boiler water level safety range is larger, the boiler steam is larger, the steam quality is well guaranteed.
    • Using the international well-know brand burner and advanced automatic control system, the combustion is more stable, more convenient operation, operation more safety.
    • Boiler structure is compact, small footprint, fast installation.

    Oil Fired / Gas Fired Steam Boiler , Industrial Steam Generators High Efficiency
    Parameter


    ModelWNS
    2-1.0-Y,Q
    WNS
    4-1.25Y,Q
    WNS
    6-1.25-Y,Q
    WNS
    8-1.25-Y,Q
    WNS
    10-1.25-Y,Q
    WNS
    15-1.25-Y,Q
    WNS
    20-1.25-Y,Q
    Rated evaporation capacity(t/h)2468101520
    Rated working pressure(MPa)1.01.251.251.251.251.251.25
    Rated steam temperature184193193193193193193
    Wear-supply temperature2020606060104104
    Boiler volume(m3)3.27.410.611.714.416.821.2
    Design efficiency(%)90909090909090
    Applicable fuel



    Light oil,heavy oil,natura gas,liquified gas and urban coal gas

    Extemal sizeLenght A(mm)5084602271517600836090509650
    Width B(mm)2450270028003000300045005000
    Height H(mm)2380268428823200320052005600
    Boiler weight (t)7.212.617.218.623.536.245.5
    Diamater of main steam opening(mm)65100125150150200200
    Diameter of safety valve(mm)40×250×265×265×280×2100×2100×3
    Chimney diamater(mm)350450600700750900

    1000



    Competitive Advantage


    Quality control and management to the whole produce process, including ingot smelting, hot-rolling, heat treatment, machining and strictly final inspection prior to delivery.
    Excellent product quality and service, competitive price, “in-time” delivery

    Oil Fired / Gas Fired Steam Boiler , Industrial Steam Generators High EfficiencyOil Fired / Gas Fired Steam Boiler , Industrial Steam Generators High Efficiency
