| MOQ: | 1 bộ |
| giá bán: | Có thể đàm phán |
| bao bì tiêu chuẩn: | Đóng gói khung sắt |
| Thời gian giao hàng: | 30 - 60 ngày |
| phương thức thanh toán: | Liên minh phương Tây |
| khả năng cung cấp: | 1500 tấn mỗi tháng |

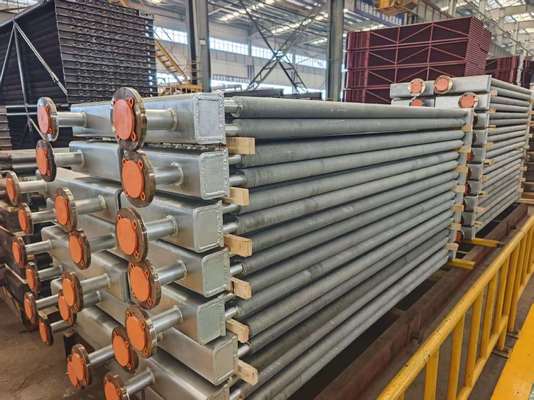

Spiral Finned Tubes Smooth Surface And High Strength For Optimal Heat Transfer
What is the main function of a Boiler Fin Tube?
The main function of a Boiler Fin Tube is to enhance heat transfer efficiency. By adding fins on the outer (or inner) surface of the base tube, it increases the heat exchange area between the tube and the flue gas (or heating medium), allowing more heat to be transferred to the water/steam in the tube, thus improving the overall thermal efficiency of the boiler.
Introduction
Description of Spiral Finned Tubes:
The spiral fin steel pipes currently used are mostly wound, high frequency welded and brazed spiral fin steel pipes.
The advantages of spiral fin steel pipes are as follows:
1. Long service life, is more than 20 years;
2. The surface of the fin is smooth, and it is not easy to produce ash accumulation, ash blocking and slagging.
3. It has good density, yield strength, tensile strength and wear resistance of metal structure.
4. The welding quality is high, so that it is not easy to cause unstable heat transfer performance because of fin loosening and falling off.
Application of Spiral Fin Tubes:
Waste heat boiler tube;
Economizer tube;
Power station boiler tube;
Marine boiler tube;
Heat exchanger
Technical parameter
| Medium | air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature | standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials | carbon steel, stainless steel, alloy or special materials |
| Ribs materials | carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment | according to customers specification |
Features
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running.
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage.
3. Improve the heat transfer efficiency.
4. Structure arrangement: In line or staggered arrangement.
| Spiral Wrapped Fin | |
| Features | Advantages |
| Each tube is individually finned | Increased thermal conductivity |
| Less fin material used | |
| Ability to replace a single damaged tube | |
| More compact fin bundle | |
| Tube face and row centers can vary | |
| Allows coil to better fit with existing case height | |
| Pitch to drain a multi-row for vertical airflow | |
| Tension Bond | Use various fin and tube materials |
| Use various fin and tube thicknesses | |
| Embedded Fin | Maintain fin bond at high temperatures |
| Header | Accommodates header thermal expansion |
| Allows longer header stubs | |
Details
1.Our products can be modified according to our customers' needs and the situation.
Quality Control
| 1 | Impact test and Strength calculation report with applied materials information. |
| 2 | 100%NDT(non-destructive inspection) report of steel plate, tube and electrode. |
| 3 | X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler. |
| 4 | Hydraulic test report: ensure the standard working pressure and safety. |
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
|
|
